CuraWay Endovenous Radiofrequency System

A matched console and consumable. Neither works without the other: the generator will not output RF unless it recognises a connected CuraWay catheter, and it reads the catheter's specification to set the correct power ceiling automatically.

Manufactured by

Request the price file

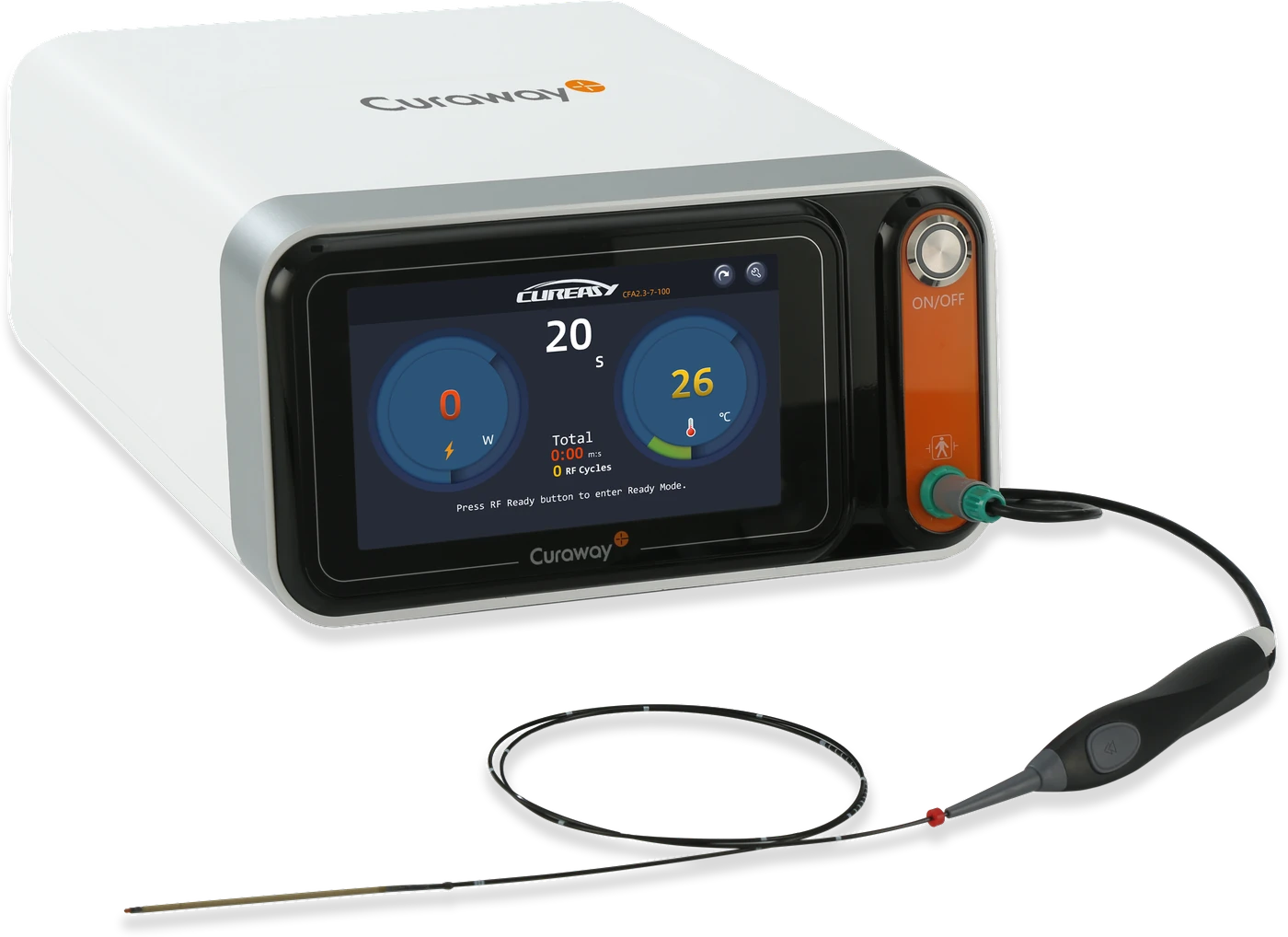

CuraWay JM-S40 generator with a CFA 2.3-7-100 radiofrequency catheter connected, the catheter shaft coiled in front of the console — The system — JM-S40 generator with a CFA 2.3-7-100 catheter connected

Catheter — heating element, position markers, ball-end tip

Radiofrequency generator

JM-S40

Output frequency480 kHz ±10%
Maximum output40 W @ 200 Ω
Peak output voltage155 V
Temperature control95–120 °C ±3 °C
Measurement range10–130 °C
Cycle time20 s, adjustable
Operating mode10 s on / 30 s off
Power supply100–240 V, 50/60 Hz
Input power100 VA
ClassificationClass I, Type BF
Footprint320 × 270 × 145 mm
Mass5.2 kg ±0.5
Service life6 years
Warranty12 months from shipment

Radiofrequency catheter

CFA · CFB · CFC · CFD

TypeBipolar, single-use
Shaft diameter2.3 / 2.0 / 1.6 mm
Working length60 cm / 100 cm
Heating element1, 2, 3, 5, 7 cm
Introducer sheath6F / 7F
Guidewire lumen0.025″ (CFA only)
Connector8-pin, keyed
Rated voltage206 V
Temperature accuracy±3 °C
Ultrasound visibleHeating element
SterilisationEthylene oxide
Packaging1 per pack
Shelf life3 years
References26 across 4 families

Catalogue

The complete catheter range

All twenty-six references. Reference codes read family, shaft diameter, element length, working length — so CFB 2.3-7-60 is a 2.3 mm shaft with a 7 cm element on a 60 cm catheter, without a guidewire lumen.

Full catheter catalogue — 26 references
Reference	Shaft	Length	Element	Sheath	Guidewire	Max power
CFA 2.3-7-60	2.3 mm	60 cm	7 cm	7F	0.025″	40 W
CFA 2.3-7-100	2.3 mm	100 cm	7 cm	7F	0.025″	40 W
CFA 2.3-5-60	2.3 mm	60 cm	5 cm	7F	0.025″	30 W
CFA 2.3-5-100	2.3 mm	100 cm	5 cm	7F	0.025″	30 W
CFA 2.3-3-60	2.3 mm	60 cm	3 cm	7F	0.025″	18 W
CFB 2.3-7-60	2.3 mm	60 cm	7 cm	7F	—	40 W
CFB 2.3-7-100	2.3 mm	100 cm	7 cm	7F	—	40 W
CFB 2.3-5-60	2.3 mm	60 cm	5 cm	7F	—	30 W
CFB 2.3-5-100	2.3 mm	100 cm	5 cm	7F	—	30 W
CFB 2.3-3-60	2.3 mm	60 cm	3 cm	7F	—	18 W
CFB 2.3-2-60	2.3 mm	60 cm	2 cm	7F	—	12 W
CFB 2.3-1-60	2.3 mm	60 cm	1 cm	7F	—	6 W
CFC 2.0-7-60	2.0 mm	60 cm	7 cm	6F	—	40 W
CFC 2.0-7-100	2.0 mm	100 cm	7 cm	6F	—	40 W
CFC 2.0-5-60	2.0 mm	60 cm	5 cm	6F	—	30 W
CFC 2.0-5-100	2.0 mm	100 cm	5 cm	6F	—	30 W
CFC 2.0-3-60	2.0 mm	60 cm	3 cm	6F	—	18 W
CFC 2.0-2-60	2.0 mm	60 cm	2 cm	6F	—	12 W
CFC 2.0-1-60	2.0 mm	60 cm	1 cm	6F	—	6 W
CFD 1.6-7-60	1.6 mm	60 cm	7 cm	6F	—	40 W
CFD 1.6-7-100	1.6 mm	100 cm	7 cm	6F	—	40 W
CFD 1.6-5-60	1.6 mm	60 cm	5 cm	6F	—	30 W
CFD 1.6-5-100	1.6 mm	100 cm	5 cm	6F	—	30 W
CFD 1.6-3-60	1.6 mm	60 cm	3 cm	6F	—	18 W
CFD 1.6-2-60	1.6 mm	60 cm	2 cm	6F	—	12 W
CFD 1.6-1-60	1.6 mm	60 cm	1 cm	6F	—	6 W

Ordering

Stock held in South Africa with our logistics partner RTT — ISO 13485 compliant, SAHPRA-compliant warehousing, GDP-compliant fleet
Opening packages built around your case mix
Standing orders and consignment arrangements available
Opening packages built around your case mix
Current price file on request

Service and maintenance

Handled in South Africa by Surgi-Clin, our repairs and maintenance partner
Fault triage, output verification and electrical safety testing
Calibration certificates accepted at facility inspection
Loan units where a repair runs long
Preventative maintenance contracts, monthly or annual
Warranty work and factory returns co-ordinated with the manufacturer

Supplied with the generator

Endovenous radiofrequency generator, JM-S40
Power cord
User manual
Certificate of qualification
Warranty card

Information on this page is intended for healthcare professionals. Full indications, contraindications, warnings and potential complications are set out in the manufacturer's Instructions for Use, which take precedence over any summary presented here.
